Dell PowerVault storage array and PowerEdge server
Today, as digital transformation accelerates, the selection of enterprise IT infrastructure directly affects business efficiency and cost control. Dell PowerVault storage arrays and PowerEdge servers have become popular choices for small and medium-sized enterprises and large enterprise data centers due to their high reliability, flexible scalability and wide compatibility.
PowerVault ME5024 storage array
Core parameters and features:
Capacity and expansion: Maximum 1PB per machine (supports 9 2U expansion cabinets), back-end 12Gbps SAS interface, compatible with all-flash or hybrid storage.
Performance: 640K IOPS, 12GB/s read throughput, support ADAPT distributed RAID technology, and drive reconstruction speed increased by 30%.
Applicable scenarios
Small and medium-sized enterprises: Budget range of 100,000-200,000 yuan, need to replace the rapid deployment requirements of traditional NAS/DAS.
Edge computing: Support edge scenarios such as CCTV monitoring and oil and gas exploration, and withstand high temperature and high humidity environments.
Virtualization and VDI: Deeply integrated with VMware/Hyper-V, suitable for virtual desktop infrastructure.
PowerVault ME5084 storage array
Core parameters and features
Capacity and expansion: Single machine maximum 6PB (3 5U expansion cabinets), support 84 3.5-inch hard drives, density increased by 40%.
Performance: Dual active controllers, 12Gbps SAS backend, support PCIe 4.0 NVMe SSD.
Redundant design: Dual power supply, dual fan redundancy, MTBF up to 200,000 hours.
Data protection:
Synchronous/asynchronous remote replication, RPO/RTO can be controlled in minutes.
Volume replication function supports cross-data center disaster recovery.
Applicable scenarios
Medium and large enterprise data centers: need to process high-concurrency OLTP transactions or real-time data streams.
Cloud computing infrastructure: As a hybrid cloud storage node, it supports VMware Cloud on AWS.
Big data analysis: Integrate with Hadoop/Spark to optimize data lake storage efficiency.
PowerEdge T550 tower server
Core parameters and features
Architecture: Dual-core Intel Xeon Scalable processor (up to 64 cores), support GPU acceleration (such as NVIDIA A2 Tensor Core).
Scalability: 32 DDR4 DIMM slots, maximum 1TB memory; 8 3.5-inch hard disk slots, support all-flash.
Silent design: 58.9 decibels at 25% load, suitable for office environment deployment.
Management: iDRAC9 remote control, support out-of-band firmware updates and fault diagnosis.
Applicable scenarios
Hybrid office environment: Local server deployment in branch offices or remote offices.
Lightweight virtualization: Run 5-10 virtual machines, support Citrix Virtual Apps.
Edge AI reasoning: Integrated NVIDIA GPU, suitable for scenarios such as image recognition and speech processing.
PowerEdge R650 rack server
Core parameters and features
Architecture: Dual-core Intel Xeon Gold 6330 (28 cores/56 threads), with a maximum turbo frequency of 3.9GHz.
Storage density: 2U rack design, supports 24 2.5-inch NVMe SSDs (E3.S specification), with a maximum storage of 122.8TB.
Network performance: Dual 10GbE SFP+ ports, optional OCP 3.0 network card.
Energy efficiency ratio: Typical power consumption is 1.2kW, and the PUE value is optimized to below 1.3.
Applicable scenarios
Cloud computing and virtualization: Supports VMmark 3.1 benchmark test, and the density of virtual machines per rack unit is increased by 30%.
Database and ERP: High memory bandwidth (1.5TB/s) is suitable for SAP HANA real-time analysis.
Containerized deployment: Integrated with Kubernetes to optimize the elastic scaling of microservices.

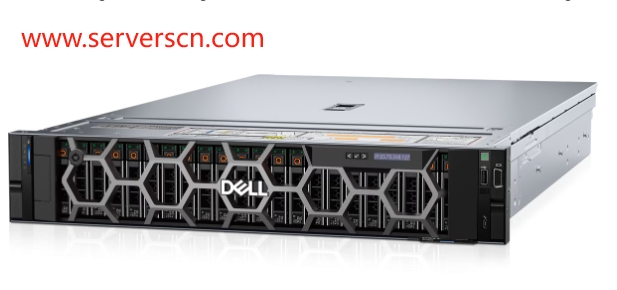

PowerEdge R7625 AMD rack server
Core parameters and features
Processor: Dual-core AMD EPYC 9654 (96 cores/192 threads), Zen 4 architecture, support for DDR5 memory.
Expandability: 32 E3.S SSDs are supported in a 2U chassis, and the storage density is 60% higher than the previous generation.
Security: Built-in Secure Enclave supports hardware-level data encryption.
Energy efficiency: Direct liquid cooling (DLC) technology is used, and the PUE value is as low as 1.15.
Applicable scenarios
AI/ML training: Supports PyTorch/TensorFlow multi-card parallelism, and FP32 computing power reaches 1.6TFLOPS.
Real-time big data: Process millions of event streams per second (such as IoT sensor data).
Scientific computing: HPC scenarios such as climate simulation and gene sequencing.
Conclusion
Dell PowerVault and PowerEdge series products provide enterprises with a complete solution from basic storage to AI computing with modular design, high-performance hardware and intelligent management tools. Buyers need to combine business growth expectations, IT skill levels and budget constraints to choose the appropriate storage and server combination.
